Inlet Air Temp Sensor - Black 2 Way
Inlet Air Temp Sensor - Black 2 Way

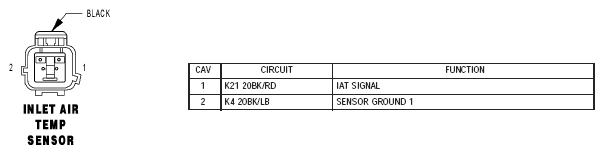

Fig 1: Identifying Connector Pinouts - Inlet Air Temp Sensor - Black 2 Way
