PCV Valve: Description

The PCV valve contains a spring loaded plunger. The plunger meters the amount of crankcase vapors routed into the combustion chamber based on intake manifold vacuum. See Fig 1.

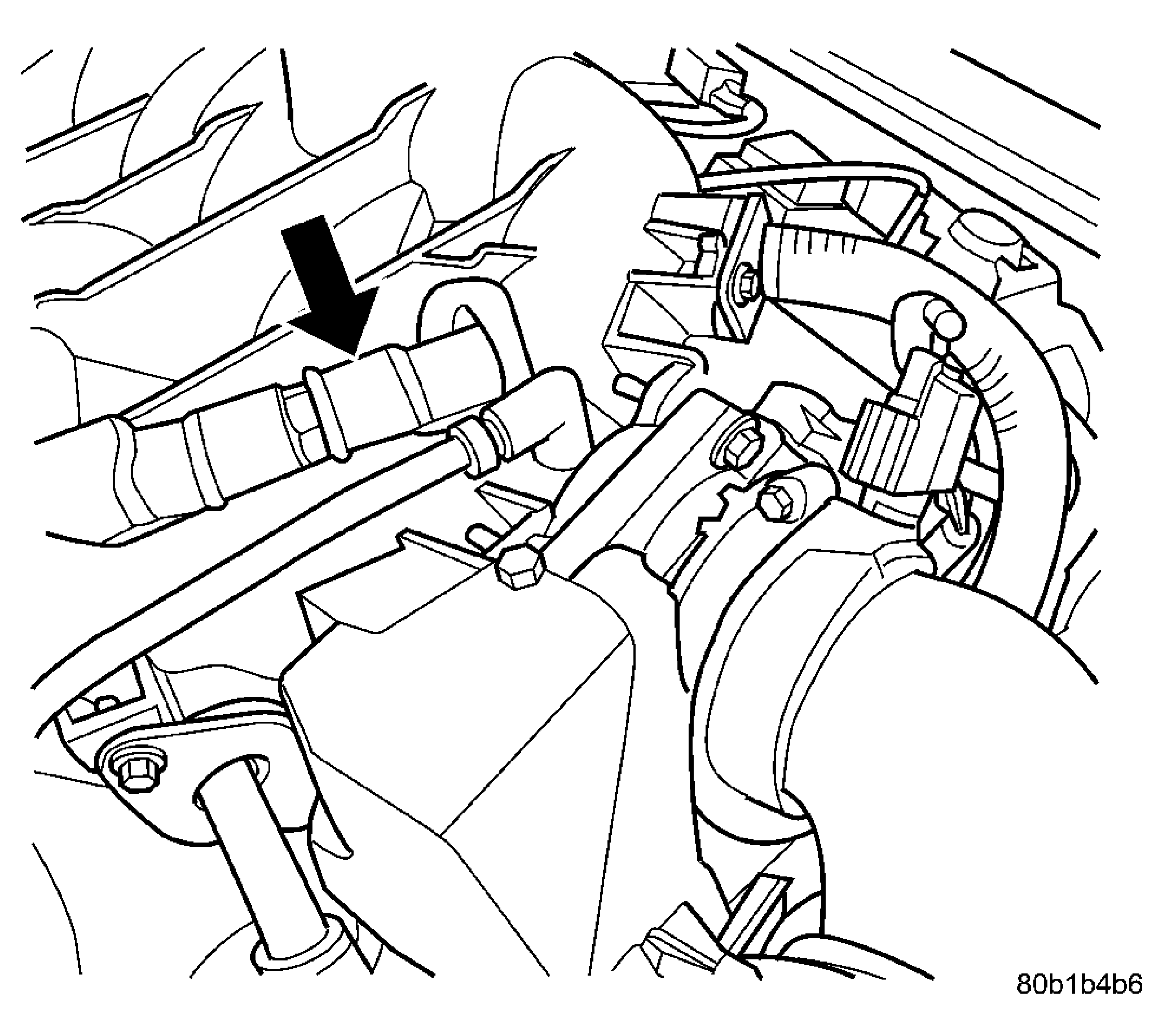

Fig 1: Positive Crankcase Valve

Courtesy of DAIMLERCHRYSLER CORP.
