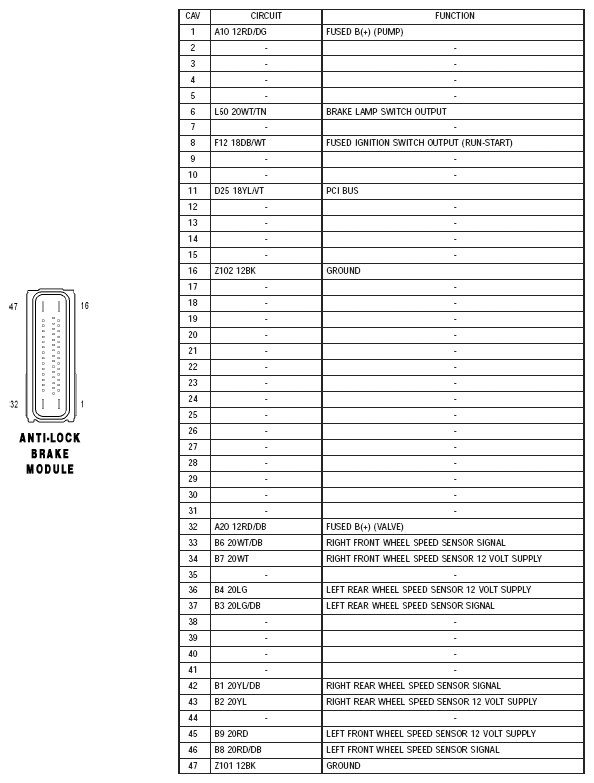

Home >> Chrysler >> 2006 >> Sebring Base, 2D Convertible, 2.7 R >> Repair and Diagnosis >> Brakes >> Traction Control >> Chassis Diagnostic Procedures - Anti-Lock Brake System >> Connector PINOUTS >> Anti-Lock Brake Module - 47 Way
