Wheel Speed Sensor Connectors: Front

LEFT FRONT

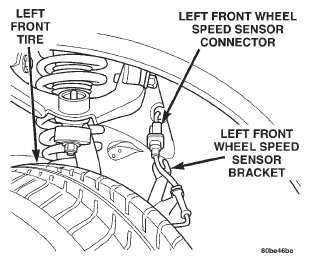

Fig 1: Identifying Left Front Tire And Left Front Wheel Speed Sensor Bracket
G04762823Courtesy of CHRYSLER

RIGHT FRONT

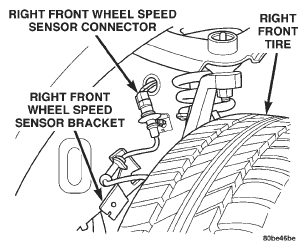

Fig 2: Identifying Right Front Wheel Speed Sensor Connector And Right Front Wheel Speed Sensor Bracket
G04762824Courtesy of CHRYSLER
