Compass/Mini Trip Computer - Schematic Diagram

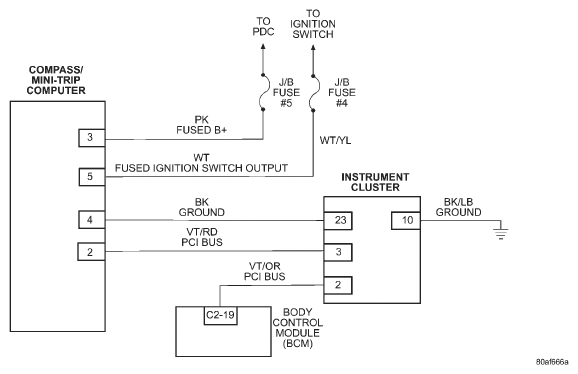

Fig 1: Compass/Mini Trip Computer - Schematic Diagram

G04762794
