Connector PINOUTS
>>
Powertrain Control Module C3 - Black/Natural 38 Way
Powertrain Control Module C3 - Black/Natural 38 Way

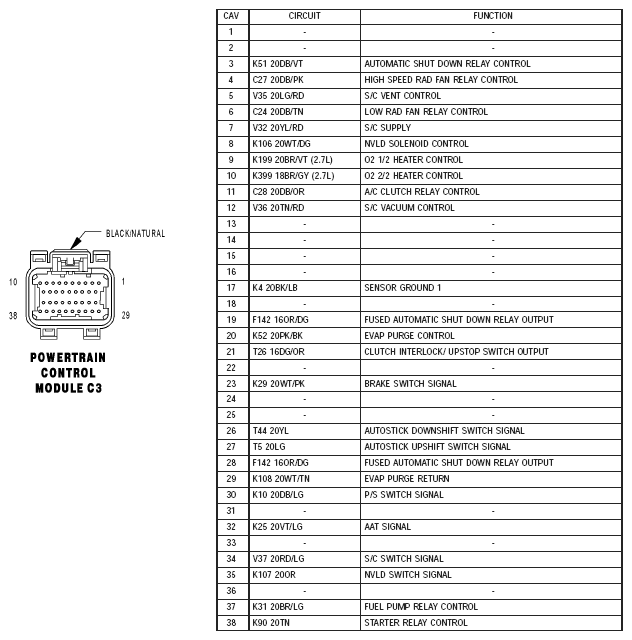

Fig 1: Identifying Connector Pinouts - Powertrain Control Module C3 - Black/Natural 38 Way
