Upper Defroster Duct: Notes
WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

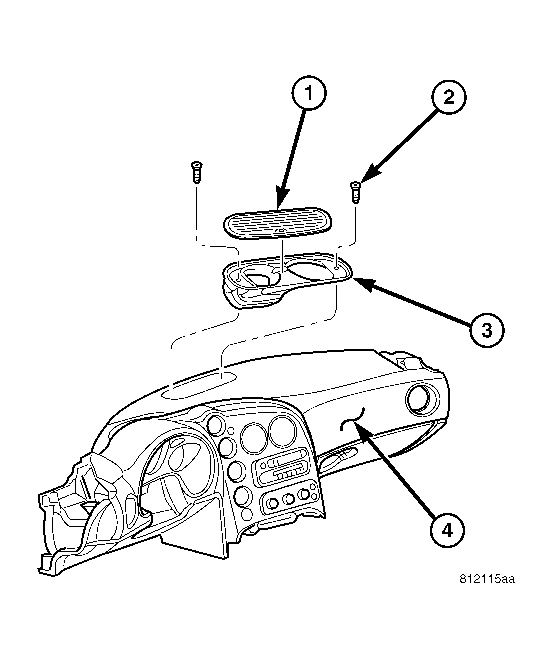

- Using a trim stick C-4755 or equivalent, gently pry the defroster grille from the instrument panel top pad. See Fig 1.
- Remove the two screws that secure the upper defroster duct to the top of the instrument panel and remove the duct.
| 1 - DEFROSTER GRILLE |
| 2 - SCREW (2) |
| 3 - UPPER DEFROSTER DUCT |
| 4 - INSTRUMENT PANEL |
