A/C Pressure Transducer: Removal

WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Note: It is not necessary to discharge the refrigerant system to replace the A/C pressure transducer.

Disconnect and isolate the negative battery cable.
Disconnect the wire harness connector from the A/C pressure transducer. See Fig 1
Remove the A/C pressure transducer from the fitting on the discharge line and remove and discard the O-ring seal.

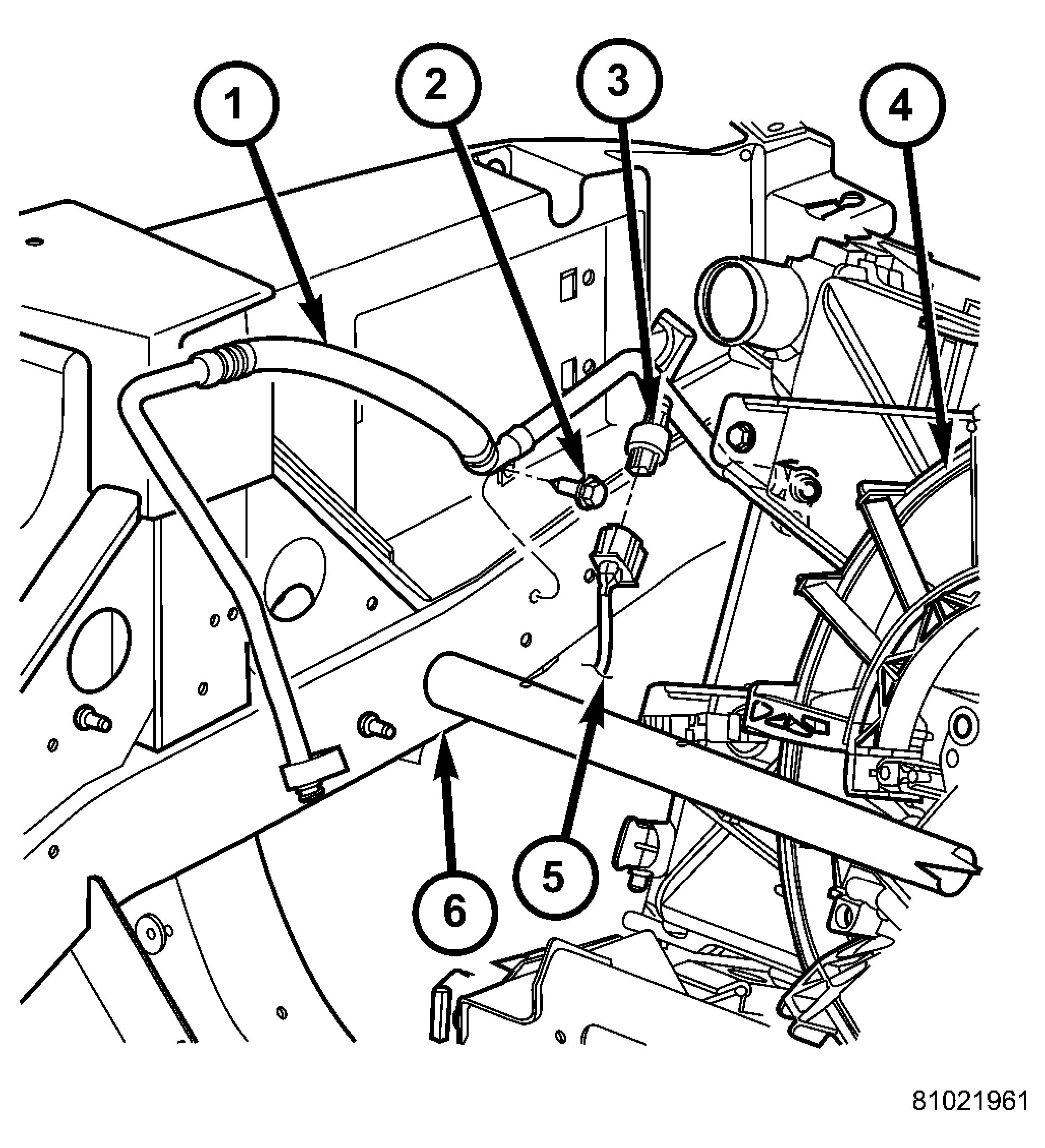

Fig 1: Locating A/C Discharge Line & A/C Pressure Transducer

Courtesy of DAIMLERCHRYSLER CORP.

1 - DISCHARGE LINE

2 - SCREW

3 - A/C PRESSURE TRANSDUCER

4 - RADIATOR/FAN/CONDENSER MODULE

5 - WIRE HARNESS CONNECTOR

6 - LH FRAME RAIL
