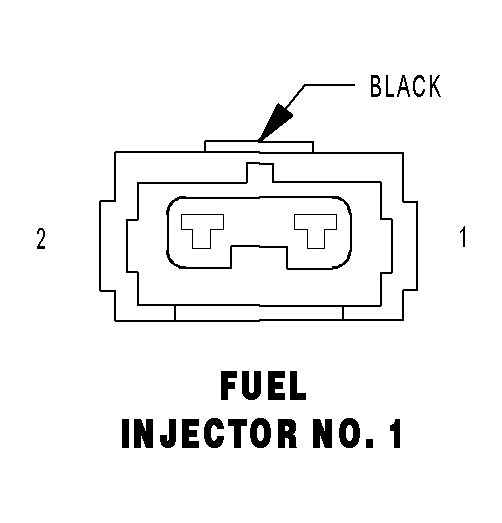

Fuel Injector 1 Connector End View

WARNING: This page is about a different car, the 2009 Dodge Viper, 2008 Dodge Viper, and 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

FUEL INJECTOR NO. 1 - BLACK 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K11 18BR/YL	FUEL INJECTOR NO. 1 DRIVER
2	K342 16BR/WT	AUTOMATIC SHUT DOWN RELAY OUTPUT
