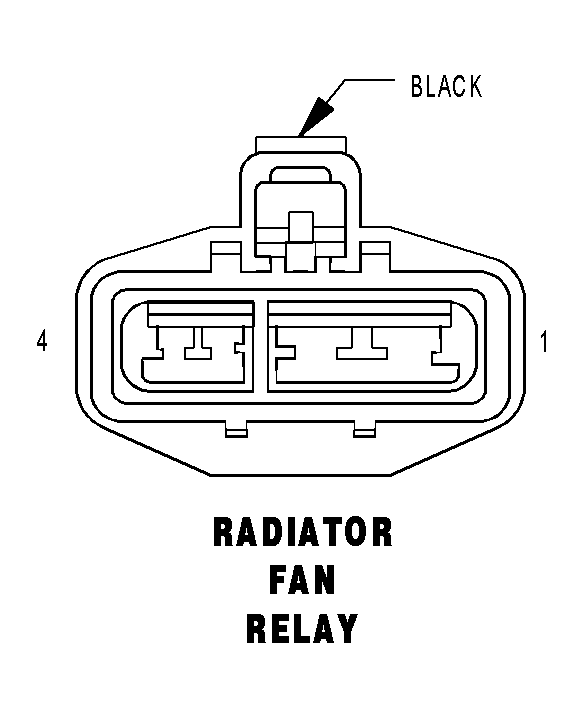

Radiator Fan Relay Connector End View
RADIATOR FAN RELAY - BLACK 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A112 12OR/RD |
FUSED B(+) |
| 2 |
N23 12DB/DG |
RADIATOR FAN RELAY OUTPUT |
| 3 |
Z723 18BK/DG |
GROUND |
| 4 |
K173 18BR/VT |
RAD FAN RELAY CONTROL |
