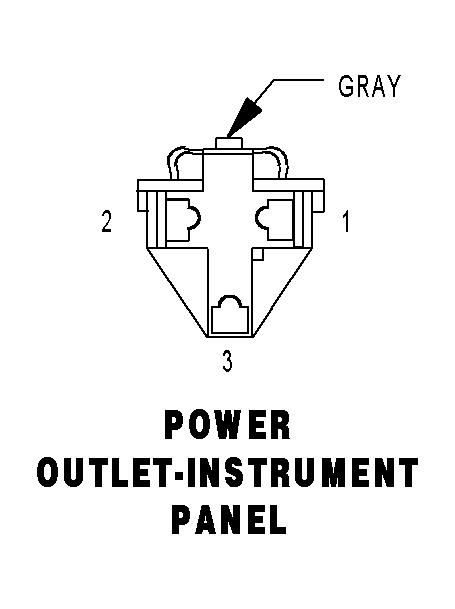

Power Instrument Panel Outlet Connector End View
Power Instrument Panel Outlet Connector End View
POWER OUTLET-INSTRUMENT PANEL - GRAY 3 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
A105 18DB/RD
FUSED B(+)
2
-
-
3
Z738 16BK/WT
GROUND
Courtesy of DAIMLERCHRYSLER CORP.
