Fuel Injector 2 Connector End View

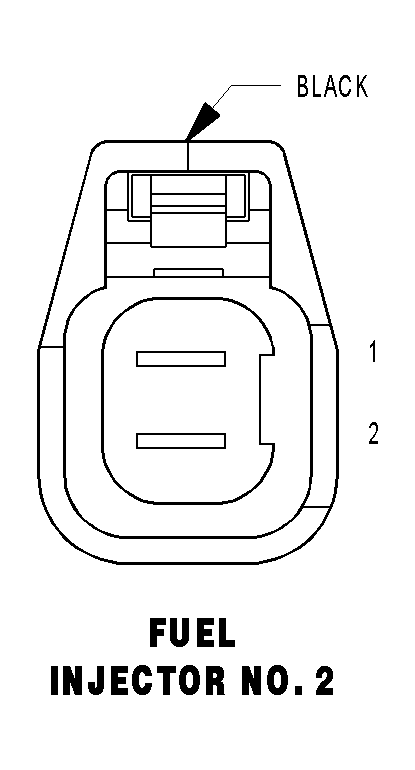

FUEL INJECTOR NO. 2 - BLACK 2 WAY

GCCS680128Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 K342 16BR/WT AUTOMATIC SHUT DOWN RELAY OUTPUT
2 K12 16BR/DB INJECTOR CONTROL NO. 2
