A/C Compressor Clutch Connector End View

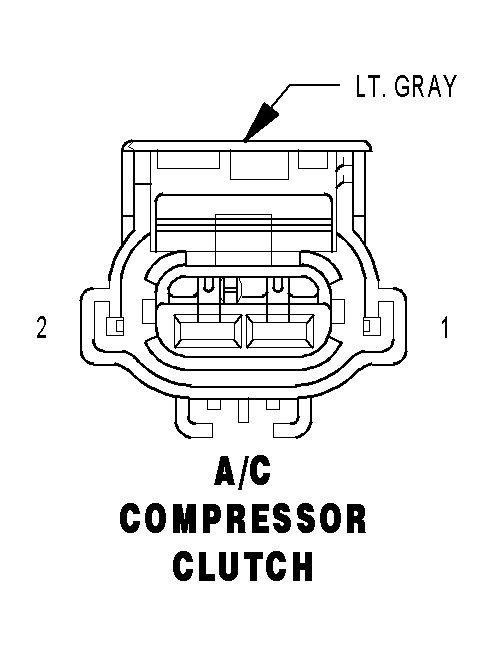

A/C COMPRESSOR CLUTCH - LT. GRAY 2 WAY

GCCS680001Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 C3 18DB/YL A/C COMPRESSOR CLUTCH RELAY OUTPUT
2 Z153 18BK/GY GROUND
