Manifold Tune Valve: Installation

  1. Install the manifold tuning valve, make sure that the alignment pin and notch line up. See Fig 1.

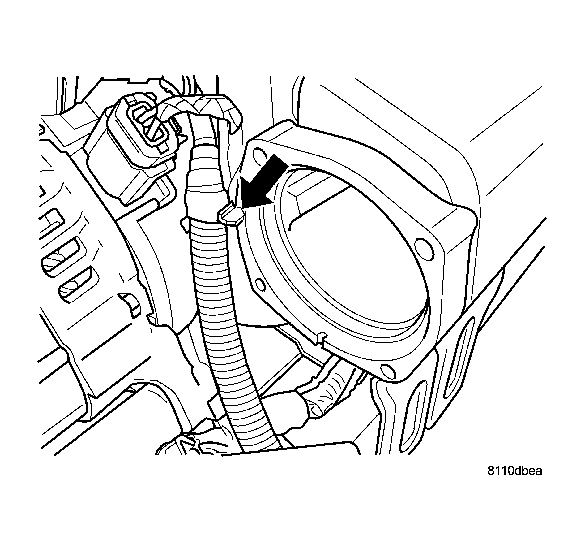

    Fig 1: MTV Locating Pin
    GC0000455Courtesy of DAIMLERCHRYSLER CORP.
  2. Install bolts and tighten.
  3. Connect the electrical connector.
  4. Install the engine cover.
  5. Connect the negative battery cable.
