Battery Tray: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the battery from the vehicle. Refer to the procedure in this article .

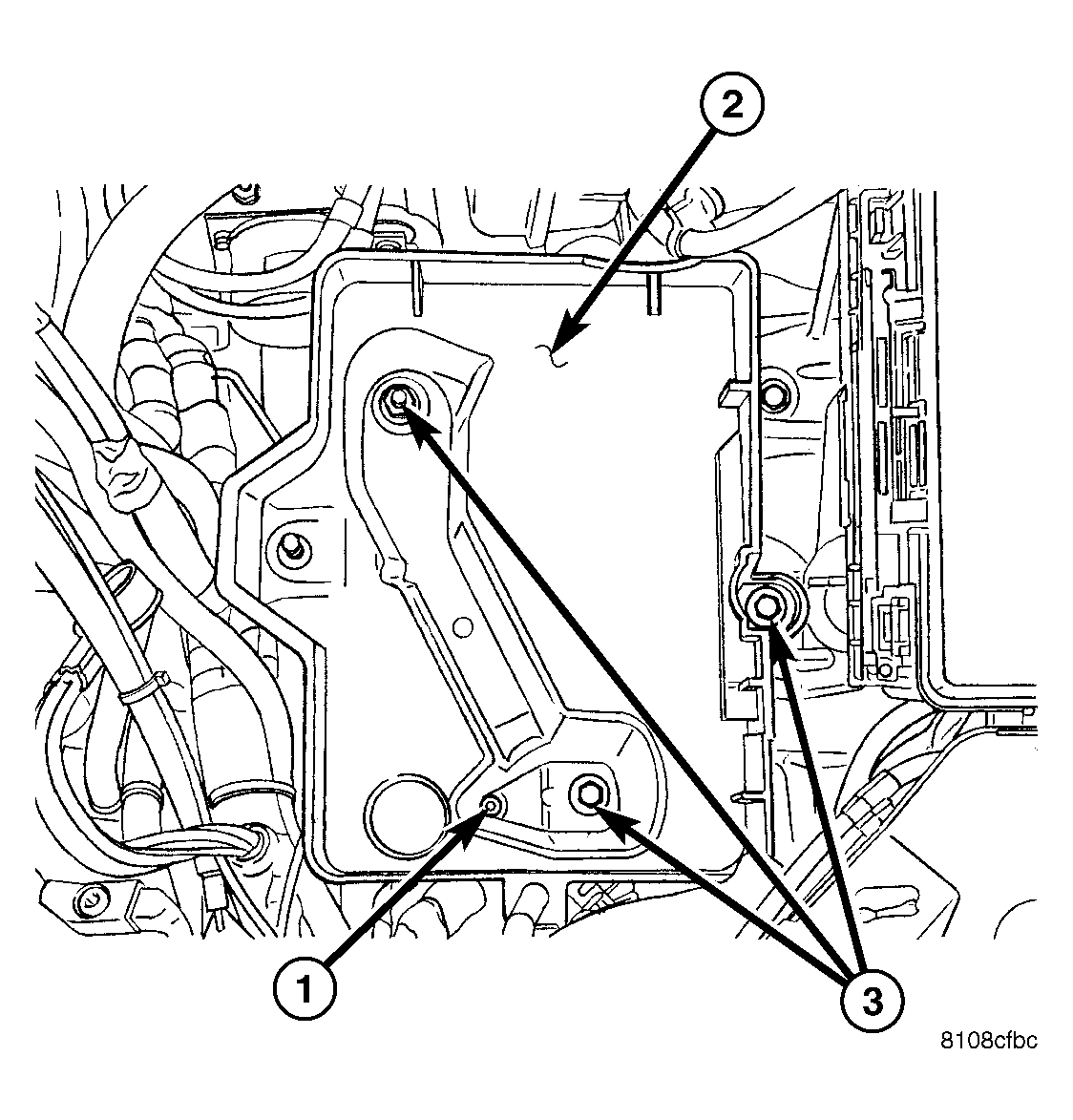

    Fig 1: CS Battery Tray
    GC0002278Courtesy of DAIMLERCHRYSLER CORP.
    1 - Battery Tray Drain Hole/Hose Attachment
    2 - Battery Tray
    3 - Retaining Fasteners
  3. Remove the battery tray retaining fasteners. See Fig 1.
  4. Pull battery tray up far enough to disconnect the drain hose assembly.
  5. Remove the battery tray from the vehicle.
