Powertrain Control Module C3 - Black/Natural 38 Way

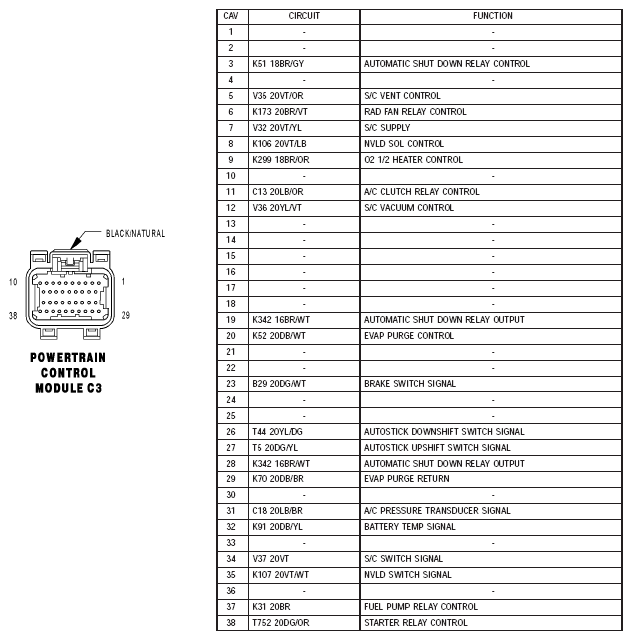

Fig 1: Identifying Connector Pinouts - Powertrain Control Module C3

G04762184

Courtesy of DAIMLERCHRYSLER CORPORATION
