Powertrain Control Module C1 - Black/Black 38 Way

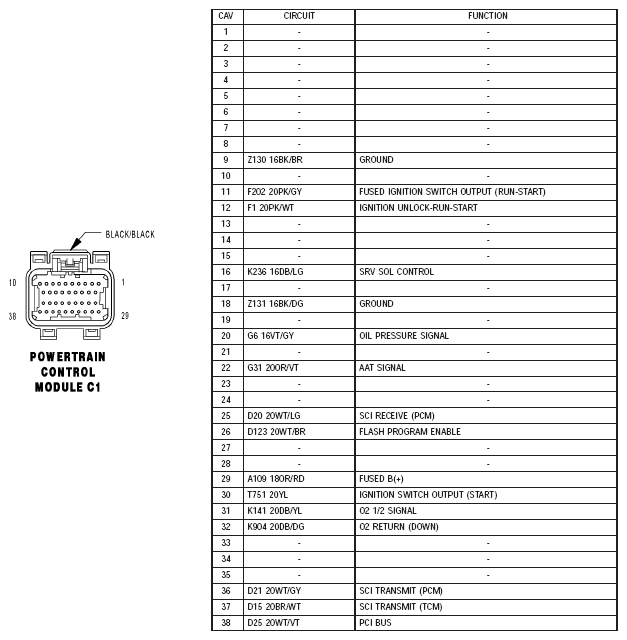

Fig 1: Identifying Connector Pinouts - Powertrain Control Module C1

G04762182

Courtesy of DAIMLERCHRYSLER CORPORATION
