IAT Sensor And IAC Sensor Locations (3.5L)

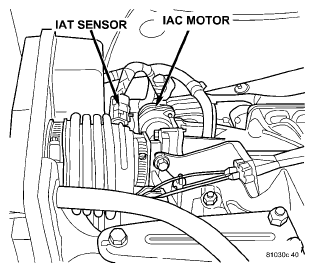

Fig 1: Identifying IAT Sensor And IAC Sensor (3.5L)

G04762129

Courtesy of DAIMLERCHRYSLER CORPORATION
