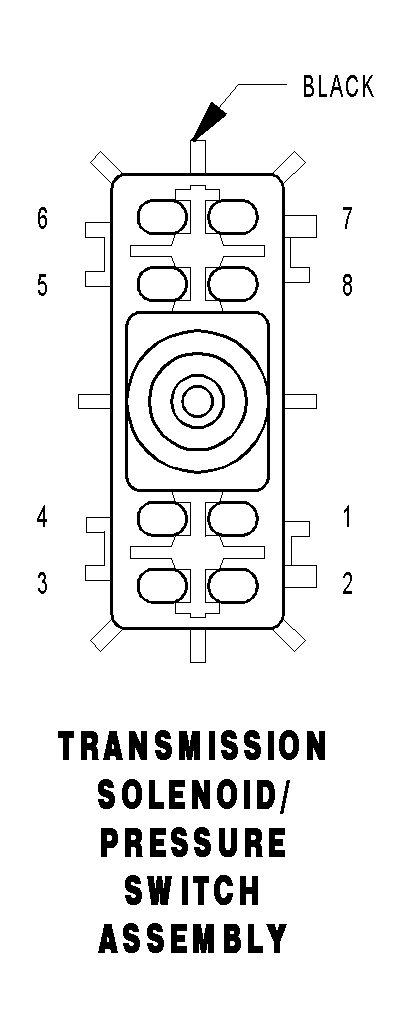

Transmission Solenoid Pressure Switch Assembly Connector End View
TRANSMISSION SOLENOID/PRESSURE SWITCH ASSEMBLY - BLACK 8 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | T47 18YL/DG | 2-4 PRESSURE SWITCH SENSE |
| 2 | T50 18YL/TN | L/R PRESSURE SWITCH SENSE |
| 3 | T9 18DG/TN | OD PRESSURE SWITCH SENSE |
| 4 | T16 16YL/OR | TRANSMISSION CONTROL RELAY OUTPUT |
| 5 | T59 18YL/LB | UD SOLENOID CONTROL |
| 6 | T60 18YL/GY | OD SOLENOID CONTROL |
| 7 | T20 18WT/DG | L/R SOLENOID CONTROL |
| 8 | T19 18DB/YL | 2-4 SOLENOID CONTROL |
