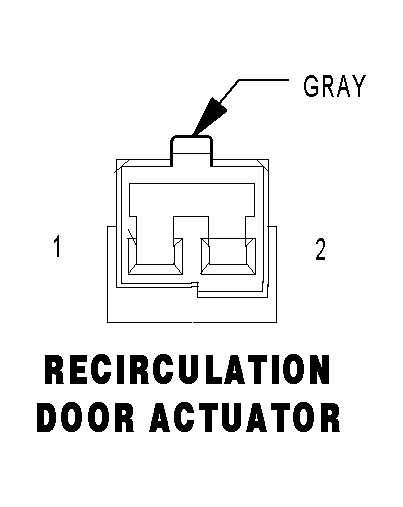

Recirculation Door Actuator Connector End View
Recirculation Door Actuator Connector End View
RECIRCULATION DOOR ACTUATOR - GRAY 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
C132 20DB/YL
RECIRCULATION DOOR DRIVER (B)
2
C32 20DB/TN
RECIRCULATION DOOR DRIVER (A)
Courtesy of DAIMLERCHRYSLER CORP.
