Rear Power Outlet Connector End View

POWER OUTLET-REAR - GRAY 3 WAY

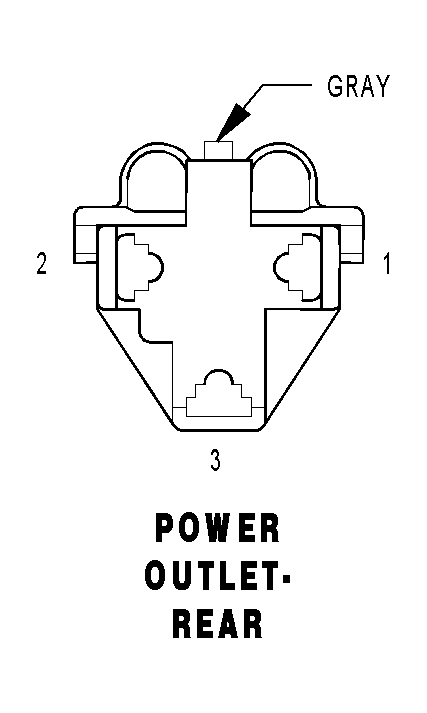

GCCS680217Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 F307 16LB/PK FUSED ACCESSORY RELAY OUTPUT
2 - -
3 Z737 16BK/LB GROUND
