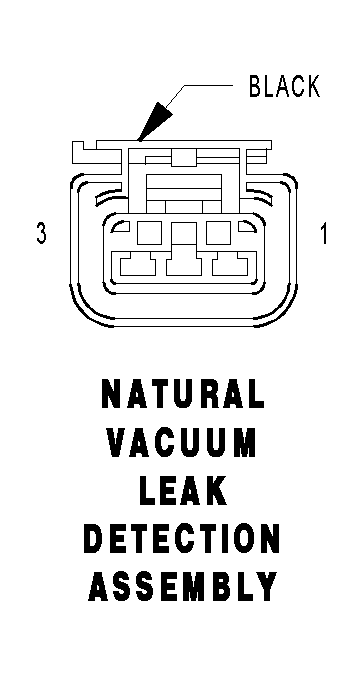

Natural Vacuum Leak Detection Assembly Connector End View
NATURAL VACUUM LEAK DETECTION ASSEMBLY - BLACK 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z166 18BK/WT |
GROUND |
| 2 |
K107 20VT/WT |
NVLD SWITCH SIGNAL |
| 3 |
K106 20VT/LB |
NVLD SOL CONTROL |
