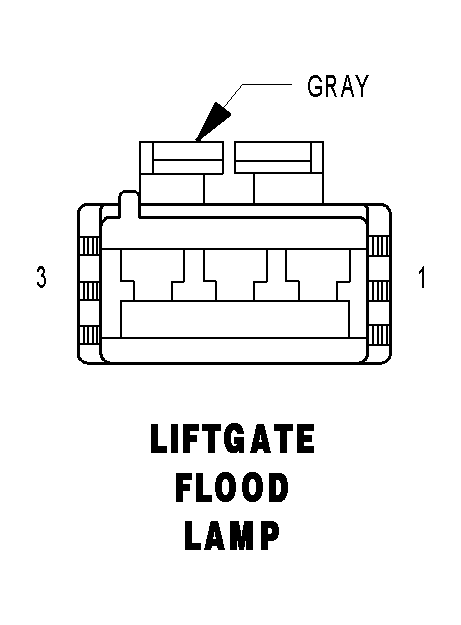

Liftgate Flood Lamp Connector End View
Liftgate Flood Lamp Connector End View
LIFTGATE FLOOD LAMP - GRAY 3 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Z311 20BK/VT
GROUND
2
-
-
3
M11 18YL/VT
LIFTGATE COURTESY LAMP DRIVER
Courtesy of DAIMLERCHRYSLER CORP.
