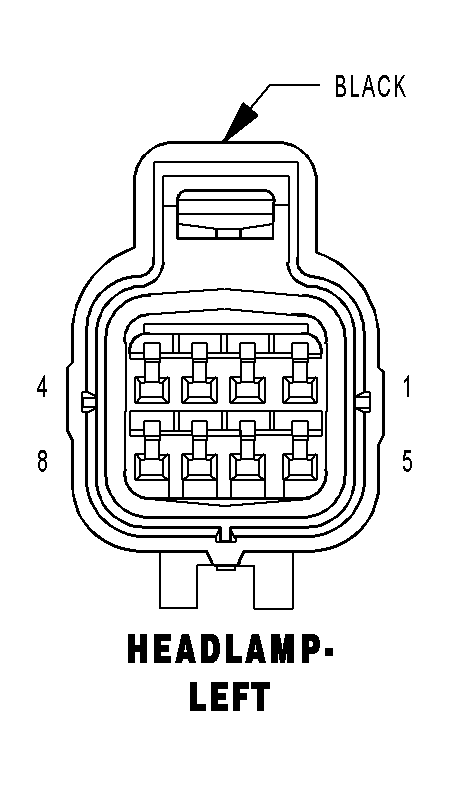

Left Headlamp Connector End View
HEADLAMP-LEFT - BLACK 8 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | L33 18WT/DG | LEFT HIGH BEAM LAMP DRIVER |
| 2 | Z345 18BK/LB | GROUND |
| 3 | L43 18WT/DB | LEFT LOW BEAM LAMP DRIVER |
| 4 | Z343 18BK/LG | GROUND |
| 5 | Z377 20BK/BR | GROUND |
| 6 | L77 20WT/BR | LEFT FRONT PARK LAMP DRIVER |
| 7 | L61 18LG/WT | LEFT FRONT TURN SIGNAL LAMP DRIVER |
| 8 | L777 20WT/VT | LEFT FRONT SIDE MARKER LAMP DRIVER |
