Fuel Injector 3 Connector End View

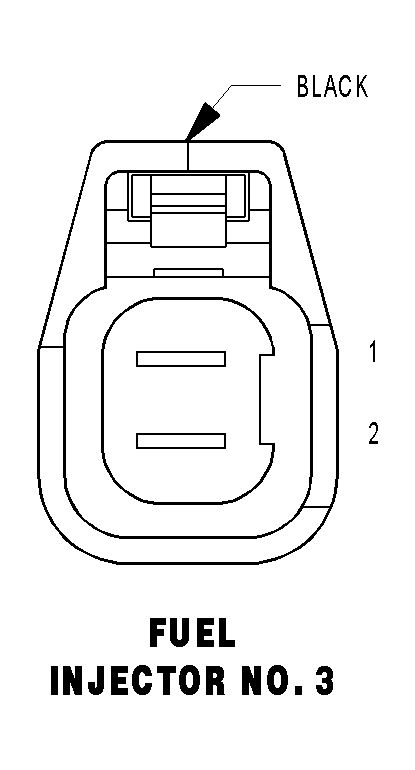

FUEL INJECTOR NO. 3 - BLACK 2 WAY

GCCS680130Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 K342 16BR/WT AUTOMATIC SHUT DOWN RELAY OUTPUT
2 K13 16BR/LB INJECTOR CONTROL NO. 3
