Belt Tension Sensor Connector End View

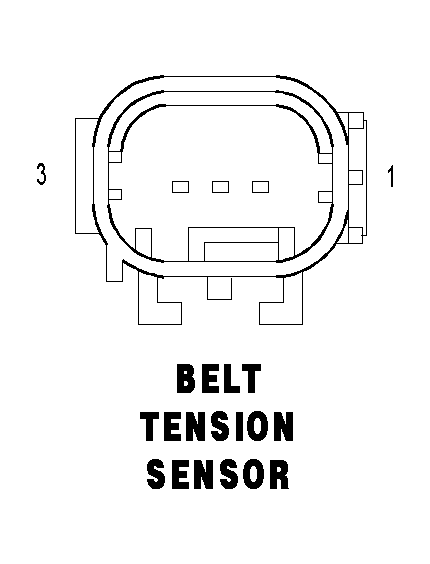

BELT TENSION SENSOR - 3 WAY

GCCS680021Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 R86 20LG/LB BELT TENSION SENSOR FEED
2 R986 20LG/BR BELT TENSION SENSOR GROUND
3 D105 20WT/OR BELT TENSION SENSOR SIGNAL
