Charging System: Generator: Removal: 3.8L

Fig 1: Generator Location

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect negative battery cable.
2. Remove the air box assembly, (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - REMOVAL) - 2.5L or (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - REMOVAL) - 3.8L .
3. Generator location. See Fig 1.
   Fig 2: Generator Field Connector

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - Connector Lock

   2 - Field Connector

4. Unlock the field electrical connector. See Fig 2.
   Fig 3: Electrical Connector Lock

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - Connector Lock

   2 - Field Connector

5. Disconnect the field electrical connector from rear of generator. See Fig 3.

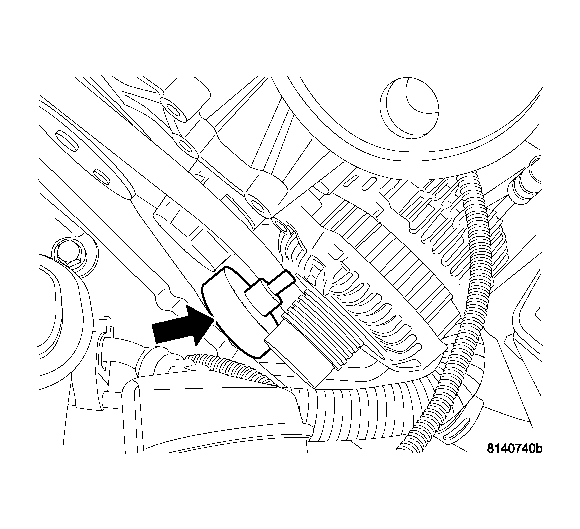

   Fig 4: Generator Battery Connection Cover

   Courtesy of DAIMLERCHRYSLER CORP.
6. Remove cover from battery cable on rear of generator. See Fig 4.
7. Remove the positive battery cable from rear of generator.
   Fig 5: Removing/Installing Drive Belt

   Courtesy of DAIMLERCHRYSLER CORP.
8. Remove the accessory drive belt. See Fig 5, (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL) .
   Fig 6: Power Steering Pump Mounting Bolts

   Courtesy of DAIMLERCHRYSLER CORP.
9. Remove the 3 mounting bolts for the power steering assembly. See Fig 6.

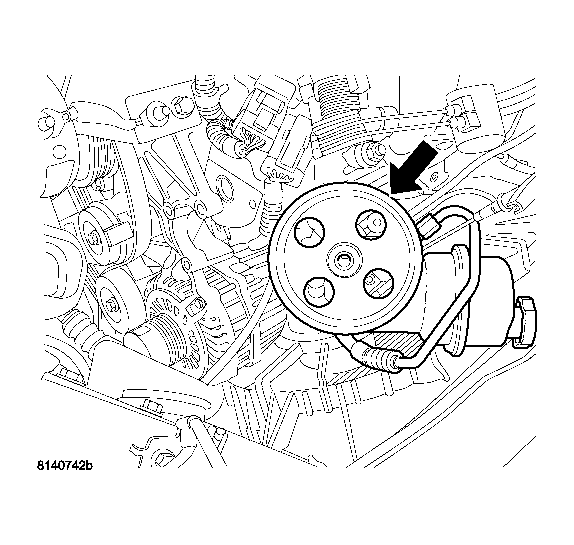

   Fig 7: Power Steering Pump Relocation

   Courtesy of DAIMLERCHRYSLER CORP.
10. Relocate the power steering assembly. See Fig 7.

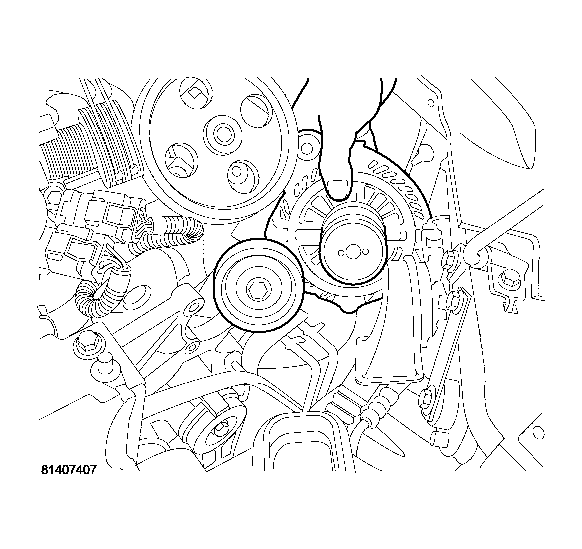

    Fig 8: Installing Mounting Bolt With Idler Pulley

    Courtesy of DAIMLERCHRYSLER CORP.
11. Remove the idler pulley/lower mounting bolt for generator. See Fig 8. This will be removed with generator assembly.
    Fig 9: Generator Rear Mounting Bolt

    Courtesy of DAIMLERCHRYSLER CORP.
12. Remove the rear mounting bolt. See Fig 9.
    Fig 10: Upper Mounting Bolt

    Courtesy of DAIMLERCHRYSLER CORP.
13. Remove the upper mounting bolt. See Fig 10.
    Fig 11: Removing/Installing Generator

    Courtesy of DAIMLERCHRYSLER CORP.
14. Remove generator and idler pulley. See Fig 11.
