Charging System: Generator: Removal: 3.5L

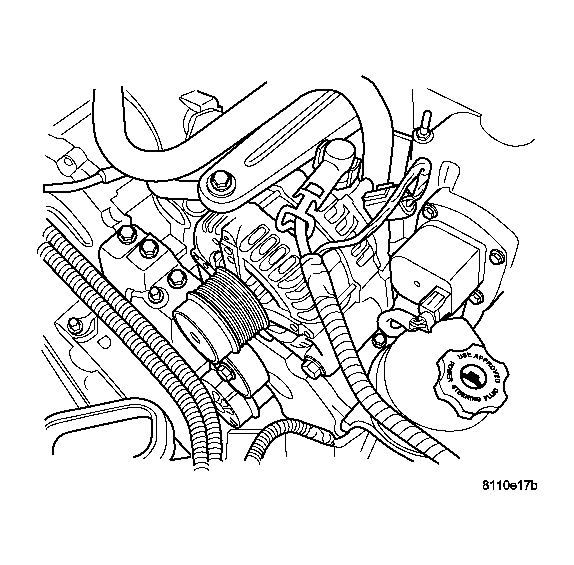

Fig 1: Positive Battery Cable & Field Connector

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect battery negative cable.
2. Remove the engine cover.
3. Remove the generator drive belt.
4. Remove the B+ terminal nut and wire. See Fig 1.
5. Disconnect the generator field circuit wiring connector. See Fig 1. Push the RED  locking tab to release.

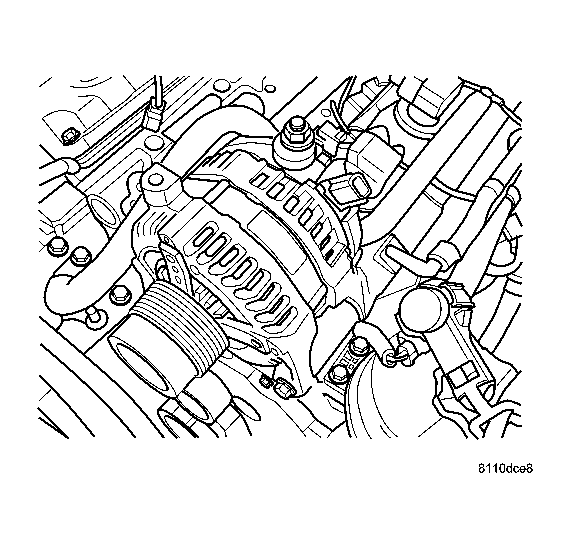

   Fig 2: Upper Mounting Bracket

   Courtesy of DAIMLERCHRYSLER CORP.
6. Remove the upper mounting bracket. See Fig 2.
   Fig 3: Locating Generator

   Courtesy of DAIMLERCHRYSLER CORP.
7. Remove the 2 lower mounting bolts. See Fig 3.
8. Remove generator.
