Battery System: THERMOWRAP: Description

A one-piece slip-on thermowrap unit shields the battery case from engine compartment heat. The thermowrap slips over the battery case and acts like a protective jacket. See Fig 1.

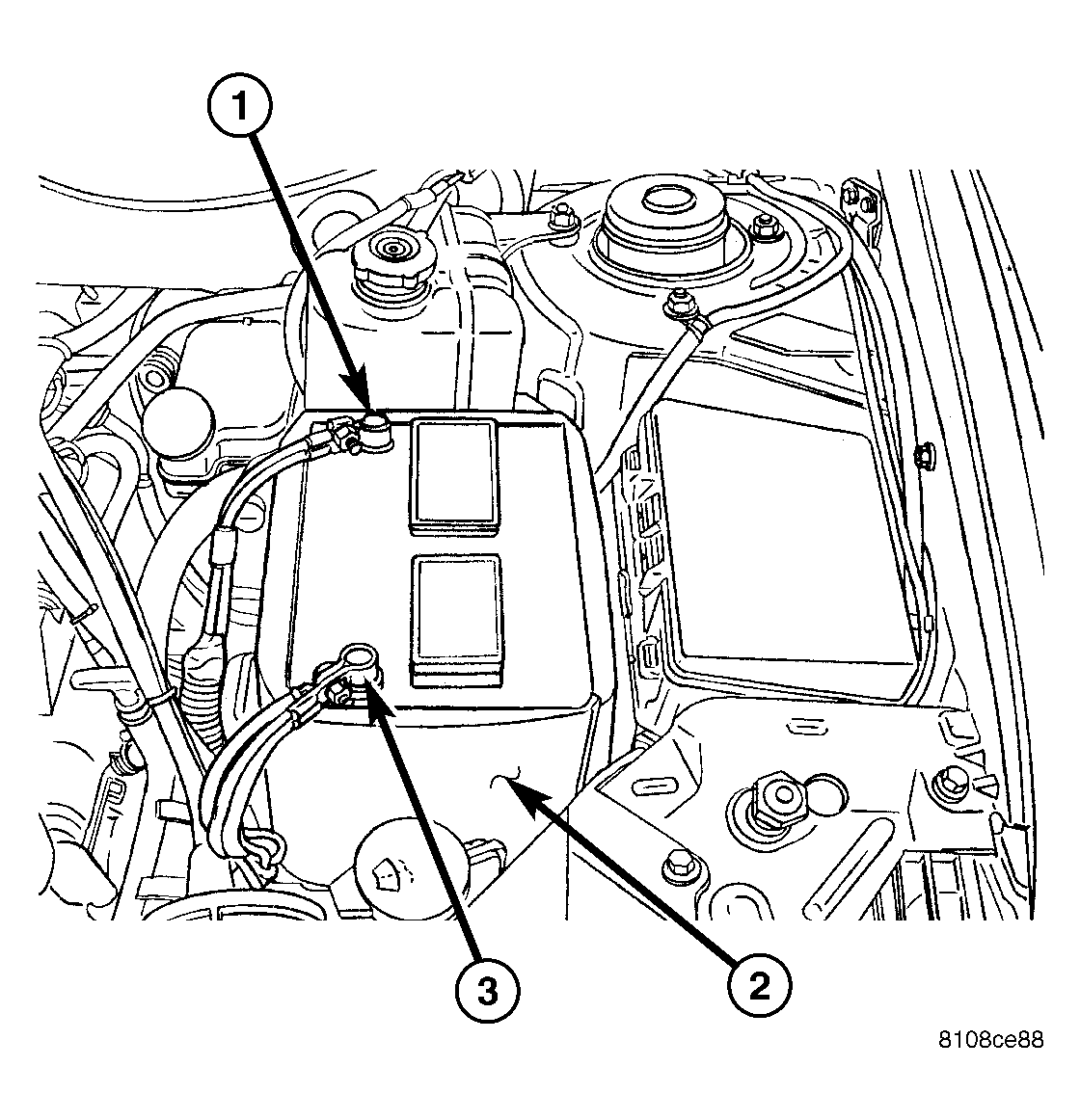

Fig 1: CS Battery/Thermowrap

Courtesy of DAIMLERCHRYSLER CORP.

1 - Positive Battery Cable

2 - Thermowrap

3 - Negative Battery Cable
