Right Liftgate Pinch Sensor (Power Liftgate) Connector End View
Right Liftgate Pinch Sensor (Power Liftgate) Connector End View

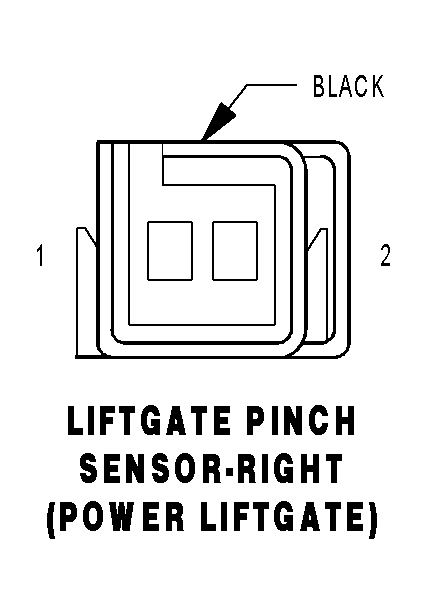

LIFTGATE PINCH SENSOR-RIGHT (POWER LIFTGATE) - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Q77 20OR/DB
RIGHT PINCH SENSOR SIGNAL
2
Q901 20OR/VT
GROUND
Courtesy of DAIMLERCHRYSLER CORP.
