Rear Booster Fan Power Module Connector End View (C2)

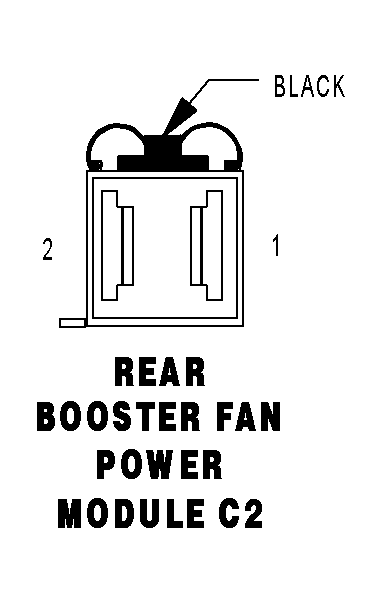

REAR BOOSTER FAN POWER MODULE C2 - BLACK 2 WAY

GCCS680251Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 LG BOOSTER FAN SUPPLY
2 BK BOOSTER FAN GROUND
