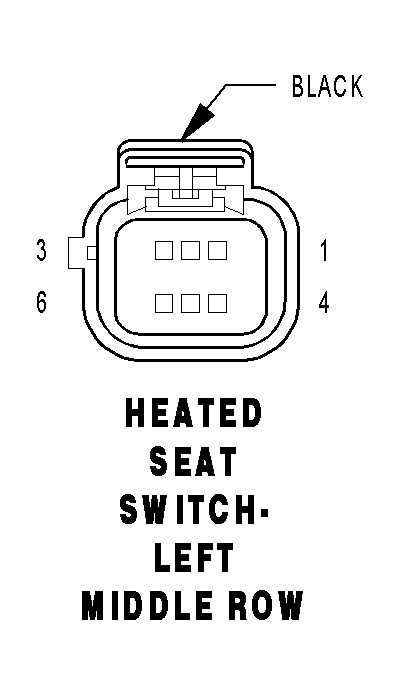

Left Heated Seat Middle Row Switch Connector End View
HEATED SEAT SWITCH-LEFT MIDDLE ROW - BLACK 6 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P181 20LG/DB | LEFT MIDDLE ROW SEAT LOW INDICATOR DRIVER |
| 2 | E12 18OR/GY | PANEL LAMPS DRIVER |
| 3 | Z870 20BK/YL | GROUND |
| 4 | F525 16TN/PK | FUSED RUN RELAY OUTPUT |
| 5 | P183 20LG/YL | LEFT MIDDLE ROW SEAT HIGH INDICATOR DRIVER |
| 6 | P77 20LG | LEFT MIDDLE ROW SEAT SWITCH MUX |
