Idle Air Control Motor Connector End View

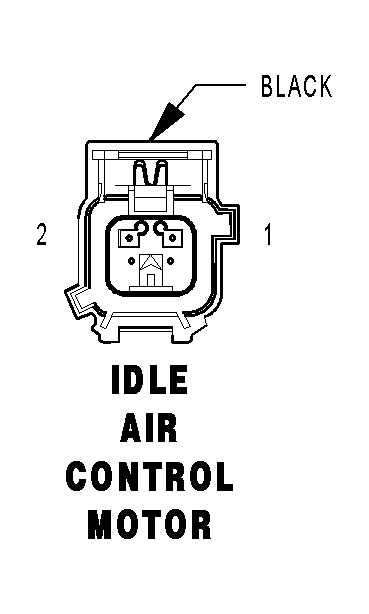

IDLE AIR CONTROL MOTOR - BLACK 2 WAY

GCCS680155Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 K61 20VT/GY IAC MOTOR CONTROL
2 K961 20BR/VT IAC RETURN
