Fuel Injector 6 Connector End View
Fuel Injector 6 Connector End View

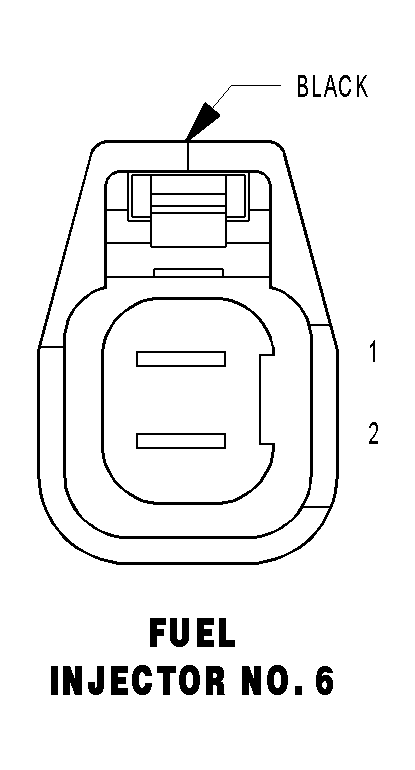

FUEL INJECTOR NO. 6 - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K342 16BR/WT
AUTOMATIC SHUT DOWN RELAY OUTPUT
2
K58 16BR/VT
INJECTOR CONTROL NO. 6
Courtesy of DAIMLERCHRYSLER CORP.
