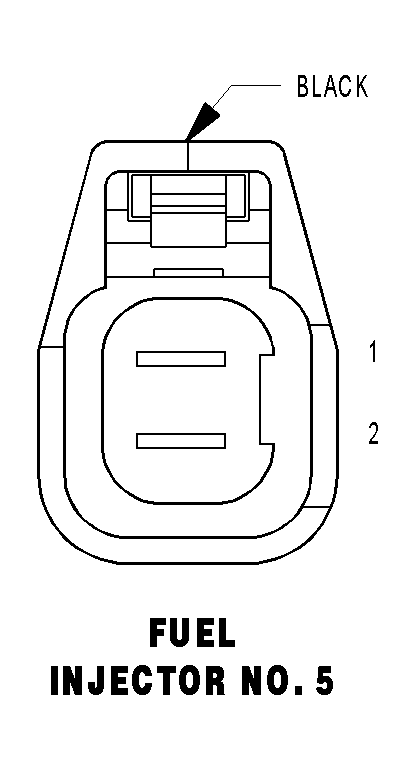

Fuel Injector 5 Connector End View
Fuel Injector 5 Connector End View
FUEL INJECTOR NO. 5 - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K342 16BR/WT
AUTOMATIC SHUT DOWN RELAY OUTPUT
2
K38 16BR/OR
INJECTOR CONTROL NO. 5
Courtesy of DAIMLERCHRYSLER CORP.
