Fuel Injector 4 Connector End View
Fuel Injector 4 Connector End View

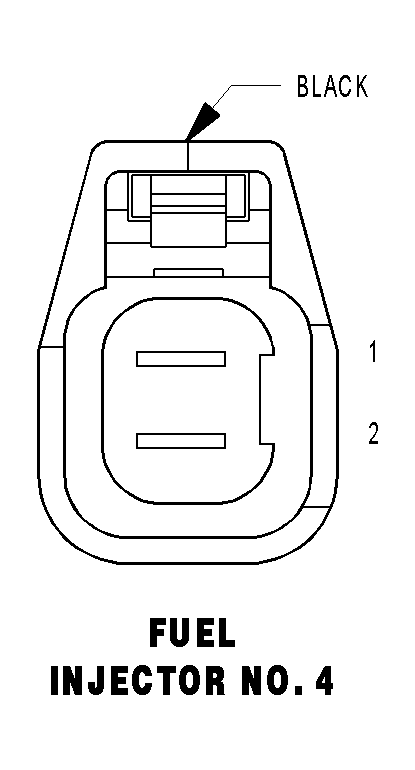

FUEL INJECTOR NO. 4 - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K342 16BR/WT
AUTOMATIC SHUT DOWN RELAY OUTPUT
2
K14 16BR/TN
INJECTOR CONTROL NO. 4
Courtesy of DAIMLERCHRYSLER CORP.
