Cigar Lighter Connector End View

CIGAR LIGHTER - GRAY 3 WAY

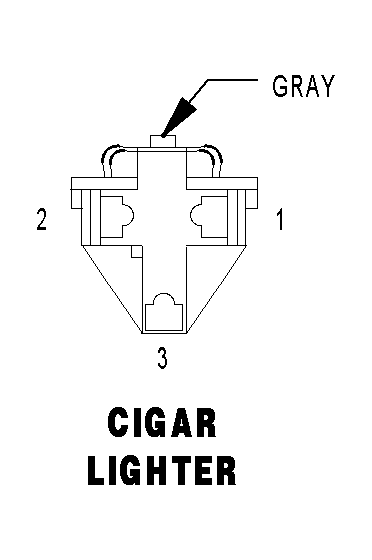

GCCS680087Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 F306 16DB/PK FUSED ACCESSORY RELAY OUTPUT
1 F306 16DB/PK FUSED ACCESSORY RELAY OUTPUT
2 - -
3 Z736 16BK/YL GROUND
