Vehicle Speed Sensor (M/T) Connector End View
WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

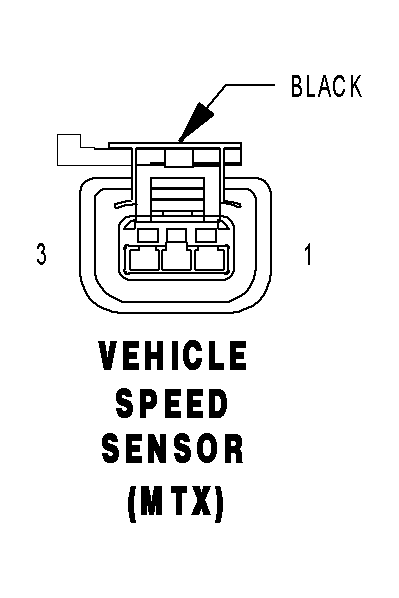

VEHICLE SPEED SENSOR (MTX) - BLACK 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
F202 18PK/GY (DIESEL) |
FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 1 |
F855 20PK/YL (GAS) |
5 VOLT SUPPLY |
| 2 |
K900 20DB/DG |
SENSOR GROUND |
| 3 |
N7 20DB/OR (DIESEL) |
VEHICLE SPEED SENSOR SIGNAL |
| 3 |
N7 18DB/OR (GAS) |
VEHICLE SPEED SIGNAL |
