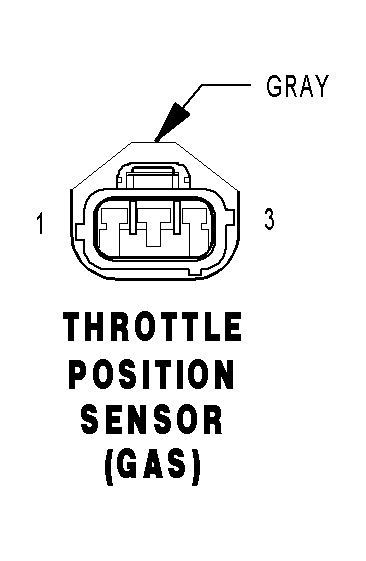

Throttle Position Sensor (Gas) Connector End View

WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

THROTTLE POSITION SENSOR (GAS) - GRAY 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K900 20DB/DG	SENSOR GROUND
2	K22 20BR/OR	TP SIGNAL
3	F855 20PK/YL	5 VOLT SUPPLY
