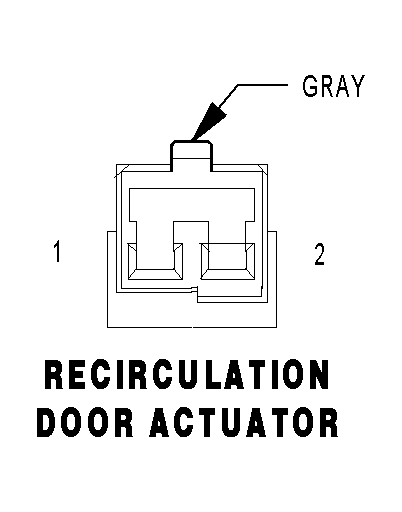

Recirculation Door Actuator Connector End View
WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
RECIRCULATION DOOR ACTUATOR - GRAY 2 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | C132 20DB/YL (ATC) | RECIRCULATION DOOR DRIVER (B) |
| 1 | C34 20DB/LB (MTC LHD) | COMMON DOOR DRIVER (B) |
| 1 | C32 20DB/TN (MTC RHD) | RECIRCULATION DOOR DRIVER (A) |
| 2 | C32 20DB/TN (ATC) | RECIRCULATION DOOR DRIVER (A) |
| 2 | C32 20DB/TN (MTC LHD) | RECIRCULATION DOOR DRIVER (A) |
| 2 | C34 20DB/LB (MTC RHD) | COMMON DOOR DRIVER (B) |
