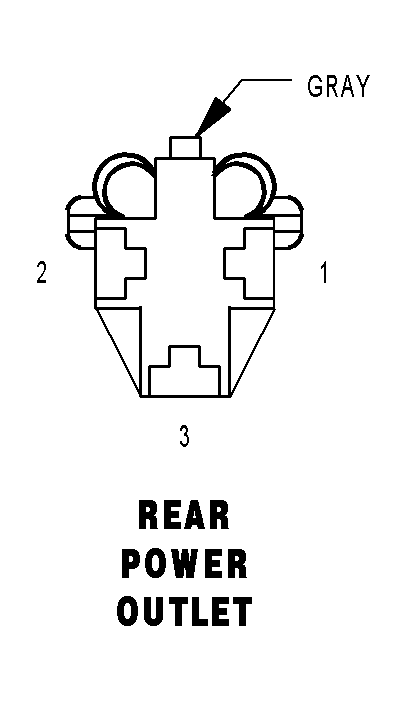

Rear Power Outlet Connector End View

WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

REAR POWER OUTLET - GRAY 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	F307 18LB/PK (ACCESSORY RELAY POSITION)	FUSED ACCESSORY RELAY OUTPUT
1	F307 18LB/PK (BATTERY POSITION)	FUSED B(+)
2	-	-
3	Z737 18BK/LB	GROUND
