Passenger Power Window Motor Connector End View

WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

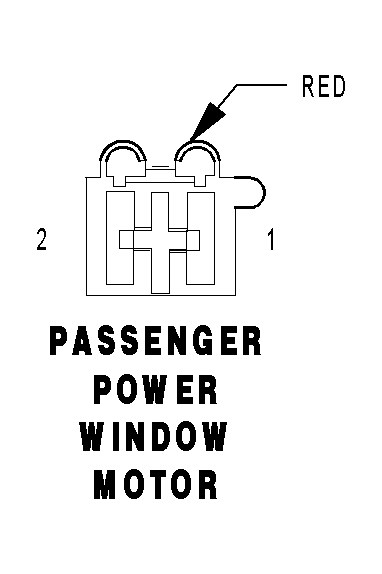

PASSENGER POWER WINDOW MOTOR - RED 2 WAY

GCRS680349Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 Q12 14OR/BR PASSENGER WINDOW DRIVER (UP)
2 Q22 14OR/VT PASSENGER WINDOW DRIVER (DOWN)
