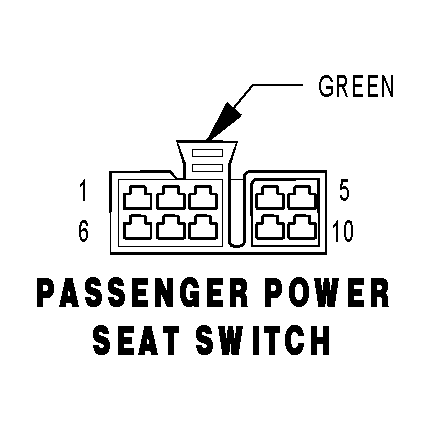

Passenger Power Seat Switch Connector End View
WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
PASSENGER POWER SEAT SWITCH - GREEN 10 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Z848 14BK/OR | GROUND |
| 2 | P44 14LG/VT | PASSENGER RECLINER UP SWITCH SENSE |
| 3 | P16 14LG/WT | PASSENGER HORIZONTAL REARWARD SWITCH SENSE |
| 4 | P42 14LG/GY | PASSENGER RECLINER DOWN SWITCH SENSE |
| 5 | A210 14OR/RD | FUSED B(+) |
| 6 | P14 14LG/OR | PASSENGER HORIZONTAL FORWARD SWITCH SENSE |
| 7 | P20 14LG/LB | PASSENGER FRONT DOWN SWITCH SENSE |
| 8 | P12 14LG/YL | PASSENGER REAR DOWN SWITCH SENSE |
| 9 | P10 14LG/TN | PASSENGER REAR UP SWITCH SENSE |
| 10 | P18 14LG/DB (EXCEPT EXPORT) | PASSENGER FRONT UP SWITCH SENSE |
| 10 | P18 14LG (EXPORT) | PASSENGER FRONT UP SWITCH SENSE |
