Occupant Restraint Controller Connector End View (C1)
WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

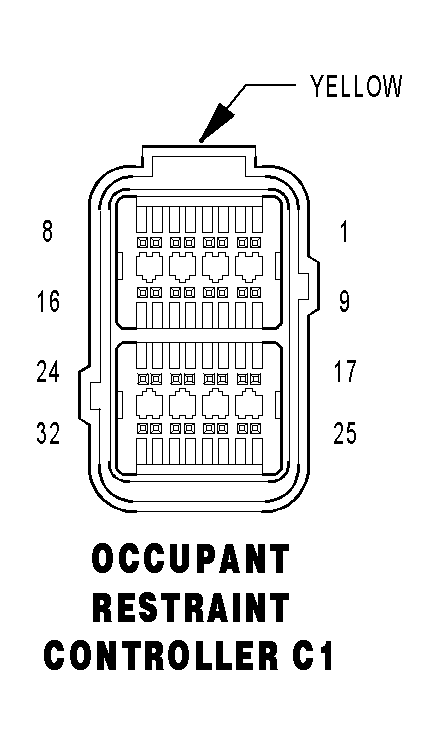

OCCUPANT RESTRAINT CONTROLLER C1 - YELLOW 32 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | R53 20LG/YL | DRIVER SEAT BELT TENSIONER LINE 2 |
| 2 | R55 20LG/DG | DRIVER SEAT BELT TENSIONER LINE 1 |
| 3 | R56 20LB/DG (EXCEPT OCCUPANT SENSING) | PASSENGER SEAT BELT TENSIONER LINE 1 |
| 4 | R54 20LB/YL (EXCEPT OCCUPANT SENSING) | PASSENGER SEAT BELT TENSIONER LINE 2 |
| 5 | - | - |
| 6 | - | - |
| 7 | R4 20OR/LB (OCCUPANT SENSING) | RIGHT CURTAIN SQUIB 1 LINE 1 |
| 8 | R2 20WT/LB (OCCUPANT SENSING) | RIGHT CURTAIN SQUIB 1 LINE 2 |
| 9 | R57 20LG/GY (SIDE AIRBAG) | DRIVER SEAT BELT SWITCH SENSE |
| 10 | - | - |
| 11 | R59 20LG/TN (SIDE AIRBAG) | DRIVER SEAT BELT SWITCH GROUND |
| 12 | - | - |
| 13 | R59 20LG/TN (EXCEPT SIDE AIRBAG) | DRIVER SEAT BELT SWITCH GROUND |
| 14 | - | - |
| 15 | R13 20LB (SIDE AIRBAG) | LEFT SIDE IMPACT SENSOR 1 SIGNAL |
| 16 | R16 20BR/LG (SIDE AIRBAG) | RIGHT SIDE IMPACT SENSOR 1 GROUND |
| 17 | R57 20LG/GY (EXCEPT SIDE AIRBAG) | DRIVER SEAT BELT SWITCH SENSE |
| 18 | - | - |
| 19 | R15 20DB | LEFT SIDE IMPACT SENSOR 1 GROUND |
| 20 | R19 20LG/WT (SIDE AIRBAG) | LEFT SIDE IMPACT SENSOR 2 GROUND |
| 21 | R20 20WT/LG (SIDE AIRBAG) | RIGHT SIDE IMPACT SENSOR 2 GROUND |
| 22 | R17 20LG (SIDE AIRBAG) | LEFT SIDE IMPACT SENSOR 2 SIGNAL |
| 23 | R18 20LB (SIDE AIRBAG) | RIGHT SIDE IMPACT SENSOR 2 SIGNAL |
| 24 | R14 20TN/LG (SIDE AIRBAG) | RIGHT SIDE IMPACT SENSOR 1 SIGNAL |
| 25 | R1 20LB/WT (SIDE AIRBAG) | LEFT CURTAIN SQUIB 1 LINE 2 |
| 26 | R3 20LB/OR (SIDE AIRBAG) | LEFT CURTAIN SQUIB 1 LINE 1 |
| 27 | R4 20OR/LB (SIDE AIRBAG) | RIGHT CURTAIN SQUIB 1 LINE 1 |
| 28 | R2 20WT/LB (SIDE AIRBAG) | RIGHT CURTAIN SQUIB 1 LINE 2 |
| 29 | - | - |
| 30 | - | - |
| 31 | - | - |
| 32 | - | - |
