Engine Coolant Temperature Sensor (Gas) Connector End View

WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

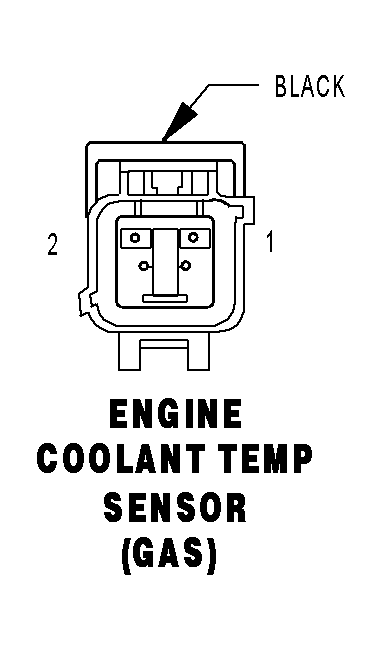

ENGINE COOLANT TEMP SENSOR (GAS) - BLACK 2 WAY

GCRS680198Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 K900 18DB/DG (3.3L/3.8L) SENSOR GROUND
1 K900 20DB/DG (EXCEPT 3.3L/3.8L) SENSOR GROUND
2 K2 18VT/OR ECT SIGNAL
