Engine Coolant Temperature Sensor (Diesel) Connector End View

WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

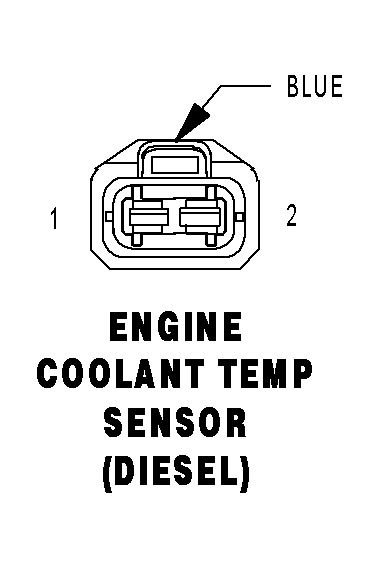

ENGINE COOLANT TEMP SENSOR (DIESEL) - BLUE 2 WAY

GCRS680197Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 K2 20TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
2 K900 20DB/DG SENSOR GROUND
