Driver Power Window Switch (LHD Lowline) Connector End View
WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

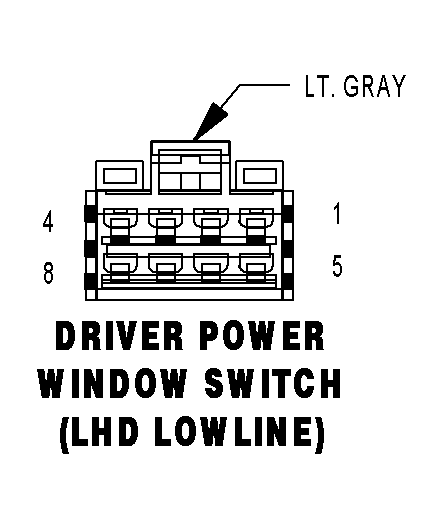

DRIVER POWER WINDOW SWITCH (LHD LOWLINE) - LT. GRAY 8 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
F304 12WT/PK |
FUSED WINDOW CIRCUIT BREAKER OUTPUT |
| 2 |
Z421 12BK/BR |
GROUND |
| 3 |
Z421 12BK/BR |
GROUND |
| 4 |
- |
- |
| 5 |
Q21 16OR/WT |
MASTER WINDOW SWITCH DRIVER (DOWN) |
| 6 |
- |
- |
| 7 |
- |
- |
| 8 |
Q11 16OR/LG |
MASTER WINDOW SWITCH DRIVER (UP) |
