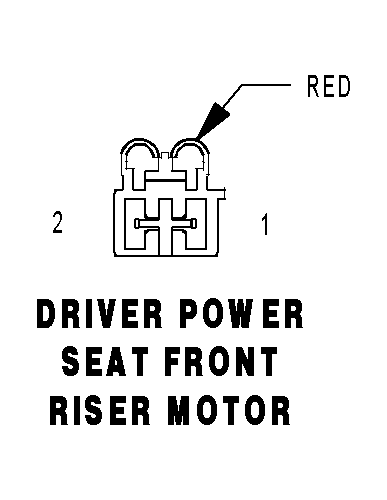

Driver Power Seat Front Riser Motor Connector End View
WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
DRIVER POWER SEAT FRONT RISER MOTOR - RED 2 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P19 14LG/LB (EXCEPT MEMORY) | DRIVER SEAT FRONT UP SWITCH SENSE |
| 1 | P121 14LG/DB (MEMORY EXCEPT EXPORT) | DRIVER SEAT FRONT DOWN DRIVER |
| 1 | P119 14LG/DG (MEMORY EXPORT) | DRIVER SEAT FRONT UP DRIVER |
| 2 | P21 14LG/TN (EXCEPT MEMORY) | DRIVER SEAT FRONT DOWN SWITCH SENSE |
| 2 | P121 14LG/DB (MEMORY EXCEPT EXPORT) | DRIVER SEAT FRONT DOWN DRIVER |
| 2 | P119 14LG/DG (MEMORY EXPORT) | DRIVER SEAT FRONT UP DRIVER |
