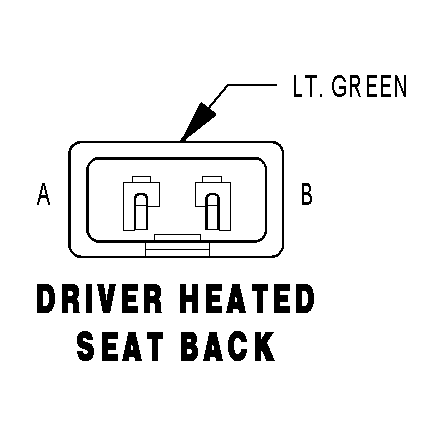

Driver Heated Seat Back Connector End View
WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
DRIVER HEATED SEAT BACK - LT. GREEN 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| A |
S1 18DB (LHD) |
SEAT BACK HEATER B(+) DRIVER |
| A |
S1 18RD (RHD) |
SEAT BACK HEATER B(+) DRIVER |
| B |
S2 18DG (LHD) |
SEAT BACK HEATER GROUND |
| B |
S2 18BK (RHD) |
SEAT BACK HEATER GROUND |
