Belt Tension Sensor Connector End View

WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

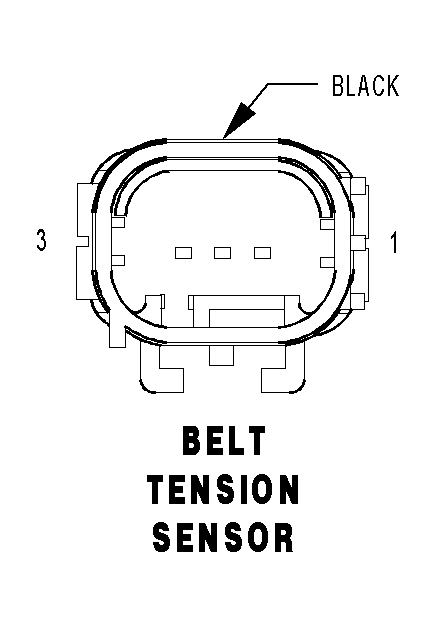

BELT TENSION SENSOR - BLACK 3 WAY

GCRS680020Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 R86 20LG/LB BELT TENSION SENSOR FEED
2 R986 20LG/BR BELT TENSION SENSOR GROUND
3 D105 20WT/OR BELT TENSION SENSOR SIGNAL
